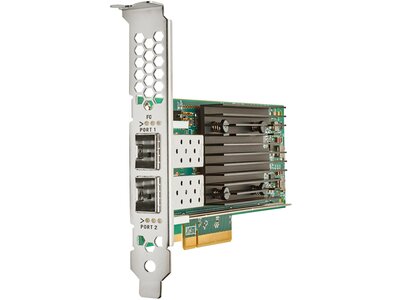

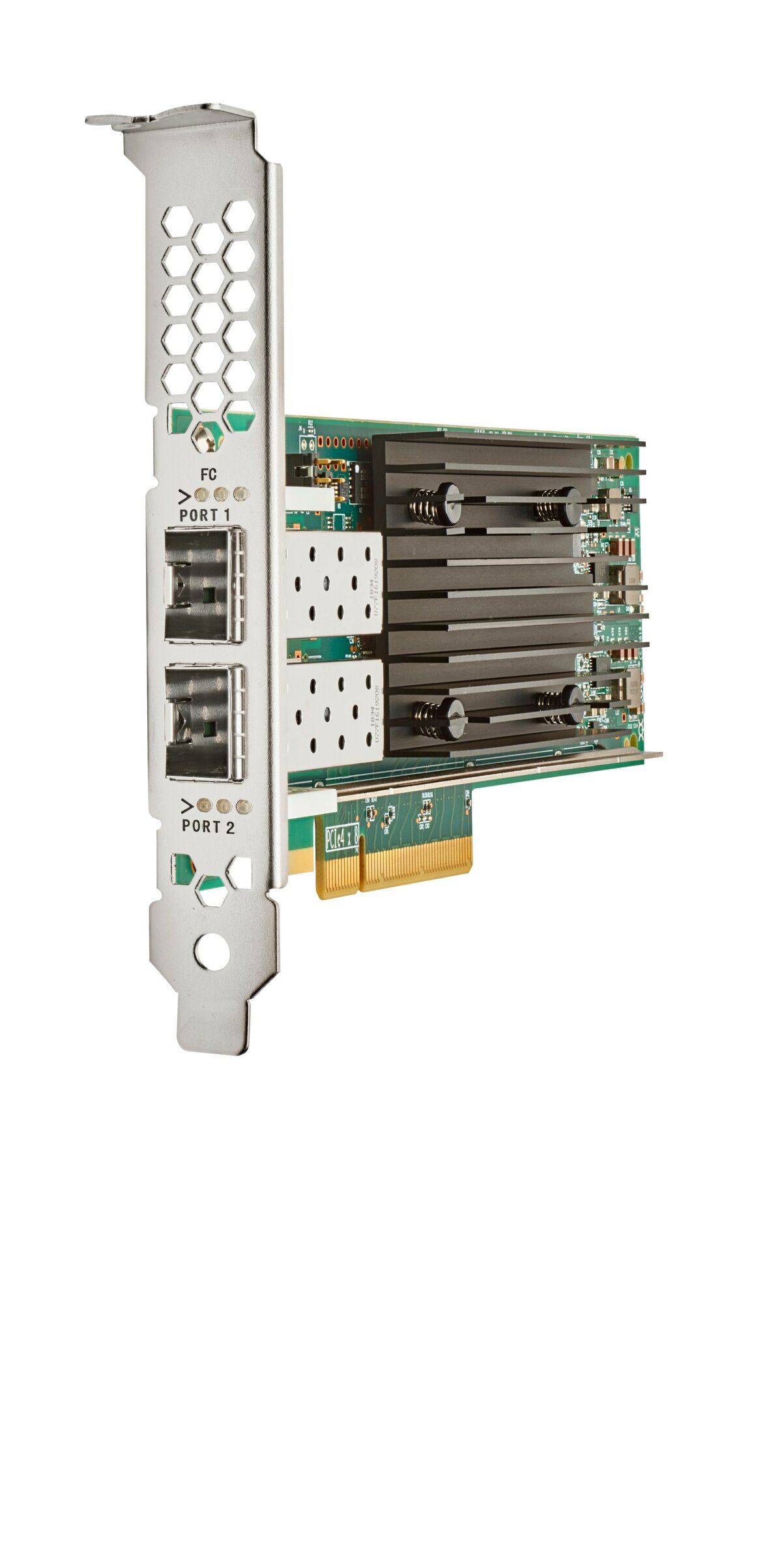

HPE SN1610Q 32Gb 2‑port Fibre Channel Host Bus Adapter – R2E09A
What’s New
- NVMe protocol
- Hardware root of trust
- Improve bandwidth, latency, and I/O performance
Key Features
32 Gb High Performance Bandwidth, Lower Latency, and Higher Number of I/Os
HPE SN1610Q 32Gb Fibre Channel HBA offers higher bandwidth than older HBAs to allow for faster travel from source to destination targets.
Lower latency enables the transition from one action to the next action transaction. With 32,000,000,000 (billion) bits traveling per second, even small improvements to latency can have large impacts at scale.
Performance up to 2 million IOPS.
Database and Data-Intensive Applications Improved Performance with Fibre Channel.
Fibre Channel is designed to support block-based data structures found in most databases and their associated applications — enterprise resource planning (ERP), reservation systems, financial and insurance, medical, and large virtual server deployments.
The adapter improves database transactional performance, enables faster business decisions with better data mining, and hosts more VMs.
The newer NVMe protocol strips away many of the older, unused SCSI commands and builds a more memory-friendly protocol (think storage arrays with SSDs) offering much lower latency and quicker responses to data transactions
Lower Total Cost of Ownership and Investment Protection
Migrating from 16 Gb HBAs reduces cabling and power consumption while improving overall performance.
SAN design allows component generations to be mixed, meaning older and newer products are automatically supported. If an end-to-end SAN upgrade is not possible, it is possible to upgrade different portions of the SAN to match budgets.
SAN design supports two generations forward compatibility: 32 Gb HBA today would function properly with 64 Gb and 128 Gb components in the future. Future deployments could place high I/O functions on faster-performing products while leaving-lower performing functions on lower-performing products.
Fibre Channel Remains the Most Secure Protocol for Transporting Data
Designed to only transmit data to other Fibre Channel devices on a SAN, the protocol excludes IP addresses removing access from outside entities and vulnerabilities.
Hardware root of trust is built into the HPE SN1610Q 32Gb Fibre Channel HBA that prevents unsigned firmware from being downloaded into the adapter making sure that only secure firmware is downloaded.
Linux is the registered trademark of Linus Torvalds in the U.S. and other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat is a registered trademark of Red Hat, Inc. in the United States and other countries. VMware is a registered trademark or trademark of VMware, Inc. and its subsidiaries in the United States and other jurisdictions. All third-party marks are property of their respective owners.
Specifications:
Data rate32 Gb per second
Number of portsDual
Bus typePCIe 4.0
Connector typeSFP+
Form factor2U
Supported cablesShortwave, 50 micron, fiber optic up to 100 meters
Server type supportedHPE ProLiant platforms. Please refer to the Server QuickSpecs for more information.
Compatible operating systemsRed Hat®, Linux® SUSE Linux, VMware®, Microsoft®, Windows®. Visit www.hpe.com/storage/spock for the latest available information on Operating System support.
Power12.3W Max -No SFP
Compatible array platformsHPE MSA family, HPE XP family, HPE 3PAR family, and HPE Nimble Storage family. Visit www.hpe.com/storage/spock for the latest available information on array support.
Management featuresHPE GreenLake SAN Fabric Manager
WarrantyThree-year limited warranty, parts exchange next business day delivery. For more warranty information refer to http://www.hpe.com/storage/warranty
WeightDual Port: 120 g (4.20 ounces)
Dimensions68.9 x 167.6 mm
Platform supportedHPE ProLiant ML and DL Gen10 and Gen10 Plus servers
Platform supportedHPE ProLiant ML and DL Gen11 Servers
Platform supportedHPE Alletra Storage Server 4110
Platform supportedHPE Alletra Storage Server 4120
Platform supportedHPE Alletra Storage Server 4140
Linux is the registered trademark of Linus Torvalds in the U.S. and other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat is a registered trademark of Red Hat, Inc. in the United States and other countries. VMware is a registered trademark or trademark of VMware, Inc. and its subsidiaries in the United States and other jurisdictions. All third-party marks are property of their respective owners.
HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter
32 Gb High Performance Bandwidth, Lower Latency, and Higher Number of I/Os
- HPE SN1610Q 32Gb Fibre Channel HBA offers higher bandwidth than older HBAs to allow for faster travel from source to destination targets.
- Lower latency enables the transition from one action to the next action transaction. With 32,000,000,000 (billion) bits traveling per second, even small improvements to latency can have large impacts at scale.
- Performance up to 2 million IOPS.
Database and Data-Intensive Applications Improved Performance with Fibre Channel.
- Fibre Channel is designed to support block-based data structures found in most databases and their associated applications — enterprise resource planning (ERP), reservation systems, financial and insurance, medical, and large virtual server deployments.
- The adapter improves database transactional performance, enables faster business decisions with better data mining, and hosts more VMs.
- The newer NVMe protocol strips away many of the older, unused SCSI commands and builds a more memory-friendly protocol (think storage arrays with SSDs) offering much lower latency and quicker responses to data transactions
Lower Total Cost of Ownership and Investment Protection
- Migrating from 16 Gb HBAs reduces cabling and power consumption while improving overall performance.
- SAN design allows component generations to be mixed, meaning older and newer products are automatically supported. If an end-to-end SAN upgrade is not possible, it is possible to upgrade different portions of the SAN to match budgets.
- SAN design supports two generations forward compatibility: 32 Gb HBA today would function properly with 64 Gb and 128 Gb components in the future. Future deployments could place high I/O functions on faster-performing products while leaving-lower performing functions on lower-performing products.
Fibre Channel Remains the Most Secure Protocol for Transporting Data
- Designed to only transmit data to other Fibre Channel devices on a SAN, the protocol excludes IP addresses removing access from outside entities and vulnerabilities.
- Hardware root of trust is built into the HPE SN1610Q 32Gb Fibre Channel HBA that prevents unsigned firmware from being downloaded into the adapter making sure that only secure firmware is downloaded.
